The DocuLUX camera system is a low-cost bundle containing either a monochrome or color camera together with a software application which helps you to visualize and document your biological, biophysical, biochemical or medical samples.
The DocuLUX software can either be used together with our PATCHMASTER software or as a stand-alone software which enormously increases the scope of applications. Further, it is possible to use several cameras together with several software instances.
Saving images together with electrophysiological data

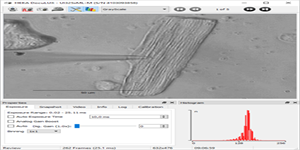

Live view
Snapshots & Triggered Snapshots
Video acquisition
Auto Exposure function
Image Calibration (scale bar, grid, ruler)
Easy image trigger integration for PGF sequences
Easy protocol sequence handling via DocuLUX event in PATCHMASTER
Can be used either together with PATCHMASTER, POTMASTER or CHARTMASTER or as a stand-alone software
Multiple cameras can be used
Free software updates
32 and 64-bit version available
DocuLUX software
Camera
1/1.8'' CMOS sensor
4.5 μm pixel size
1600x1200 (1.92 Mpixel)
8-bit depth
USB 3.0 cable
Trigger cable
User manual
MS Windows 7, 8 or 10 (32-
USB 3.0 port
Order Number for
color camera: 895286
Order Number for
monochrome camera: 895287
Get a Quote
